Don't even start looking at pictures  here if you didnt read logs on bottom of this page first:

>>>>>>>>>>>>>>>http://uncovering-cicada.wikia.com/wiki/OutGuess <<<<<<<<<<<<<<<<<<<<<


This page is not finished yet

and my anylsis needs a lot more testing to be sure, if there are no squares on uniform background it does not necessarily mean that there is no outguess, it appears that if jpg is big enough and message hidden with outgues is short , background is not touched by outguess, as you can see on first jpg of 2014, outguess is in and background is fully uniform black


Page 6: probaly no outgues, i am pretty sure the re isn none, but further tests needed

Page 4: i havent even open it in PS, no time atm

Outguess JPEG creation code review

Outguess works as follow:

"For JPEG images, OutGuess preserves statistics based on frequency counts. As a result, statistical tests based on frequency counts are unable to detect the presence of steganographic content. Before embedding data into an image, OutGuess can determine the maximum message size that can be hidden while still being able to maintain statistics based on frequency counts."

As can be noticed, Outguess creates a new JPEG statistcally equivalent to the one given as an input. When creating the new JPEG, the default compression is 75, and can be set using -p to a value between 75 and 100. Consequently, the compression level of an image may give a clue about the presence of outguess, but this is not enough to draw any conclusion yet.

Let's rephrase the original question from "Is there valid outguess data in this image ?" to "Can this image be an output of the Outguess program ?". The latter question is much more easier to answer and provides a clear answer about the possibility of valid Outguess data in a picture.

Outguess uses its own JPEG wrapper code around libjpeg. When looking for clues about which program was used to generate a given output, one has to look at the header construction. When looking at the outguess JPEG wrapper code for the writing of the output, this looks like that:

int
main(int argc, char **argv)
{
     /* ... */
     if (!doretrieve) {
         /* ... */
         dsth->write(fout, image);
     } else {
         /* ... */
     }
     /* ... */
}

handler jpg_handler = {
     "jpg",
     init_JPEG_handler,
     read_JPEG_file,
     write_JPEG_file,
     bitmap_from_jpg,
     bitmap_to_jpg,
     preserve_jpg
};

void
write_JPEG_file (FILE *outfile, image *image)
{
   /* ... */
   jpeg_set_defaults(&cinfo);
   /* ... */
}

GLOBAL(void)
jpeg_set_defaults (j_compress_ptr cinfo)
{
   /* ... */
   cinfo->JFIF_major_version = 1; /* Default JFIF version = 1.01 */
   cinfo->JFIF_minor_version = 1;
   cinfo->density_unit = 0;  /* Pixel size is unknown by default */
   cinfo->X_density = 1;     /* Pixel aspect ratio is square by default */
   cinfo->Y_density = 1;
   /* ... */
}

It has to be noticed that the APP0 marker will appear as JFIF 1.1 with a void density unit and X Y densities set to 1x1. This is interesting to notice since image processors in general tend to give useful values for these fields as they will be used for printing and later editing. The APP0 header will thus look like this:

ff e0 00 10 4a 46 49 46 00 01 01 00 00 01 00 01 00 00

Now lets look at the APP0 marker for images given to 2014 (the exercise for earlier images is left to the reader):

Image          APP0 header                                             Readable
                                                                      Ouguess data
----------------------------------------------------------------------------------
Epiphany:      APP0 missing (imgur)                                     YES
Cover:         ff e0 00 10 4a 46 49 46 00 01 01 00 00 01 00 01 00 00    YES
Liber Primus:  ff e0 00 10 4a 46 49 46 00 01 01 00 00 01 00 01 00 00    YES
Chapter 1:     ff e0 00 10 4a 46 49 46 00 01 01 00 00 01 00 01 00 00    YES
Runes page 1:  ff e0 00 10 4a 46 49 46 00 01 01 00 00 01 00 01 00 00    YES
Status page:   ff e0 00 10 4a 46 49 46 00 01 01 01 01 90 01 90 00 00    NO
Runes page 2:  ff e0 00 10 4a 46 49 46 00 01 01 00 00 01 00 01 00 00    YES
Runes page 3:  ff e0 00 10 4a 46 49 46 00 01 01 01 01 90 01 90 00 00    NO
New runes p1:  ff e0 00 10 4a 46 49 46 00 01 01 01 01 90 01 90 00 00    NO
New runes p2:  ff e0 00 10 4a 46 49 46 00 01 01 01 01 90 01 90 00 00    NO
New runes p3:  ff e0 00 10 4a 46 49 46 00 01 01 00 00 01 00 01 00 00    YES
New runes p4:  ff e0 00 10 4a 46 49 46 00 01 01 01 01 90 01 90 00 00    NO
Portrait:      ff e0 00 10 4a 46 49 46 00 01 01 00 00 01 00 01 00 00    YES
Last runes p1: ff e0 00 10 4a 46 49 46 00 01 01 00 00 01 00 01 00 00    YES
Last runes p2: ff e0 00 10 4a 46 49 46 00 01 01 00 00 01 00 01 00 00    YES
Last runes p3: ff e0 00 10 4a 46 49 46 00 01 01 00 00 01 00 01 00 00    YES
Last runes p4: ff e0 00 10 4a 46 49 46 00 01 01 00 00 01 00 01 00 00    YES

As can be seen, images with a density unit set to unknown and X Y densities set to 1x1 correspond to images with readable outguess data in them. From the previous paragraph we now that the images with these fields set to any other value cannot have been output from a vanilla version of Outguess. This can be fair to then say they do not contain any valid, encrypted or not, Outguess data in them.

As a bonus, it has to be noted that the 400x400 dpi we have for the other images is the default for GIMP.

All cicada image files, jpgs and pngs from 2012, 2013 and 2014

http://www.mediafire.com/download/ip1nih9otmqjno1/Cicada3301Pics2012until2014.7z

Images are in 2012 2013 and 2014 maps.

Files are supposed to be originals, but i havent double chack every single one.

Txt files in maps explain few details.

In map 2014, page4.jpg is image with magic square. That image was released on onion 3 server-status page.

They gave us the last page when we unexpected got on the "server-status" page and that probably wasnt preplanned. We think that that is actually last page of the book.

Table with data on all pics:

 name      resolution  size      number of     Outguess  Outguess  Outguess
                      in bytes outguess chars.  found    bacground details

2012       509x503    29,279       535           yes       yes     not sure yet

everywhere 509x503    28,892       1328          yes       yes     not sure yet
2nd ver.   509x503   no source     1405          yes       yes     not sure yet

2013       571x577    34,490       1459          yes       yes     not sure yet

valete     503x509    31,004       1398          yes       yes     not sure yet

2014       547x557    41,731       1150          yes      !NO!     not sure yet

1033.jpg  1327x1427   342,361      1498          yes         unconclusive

page 1    2400x3600   168,876      2899          yes      !NO!     not sure yet

page 2    2400x3600   175,159      2899          yes      !NO!     not sure yet

page 3    2400x3600   1,476,614    2899          yes      !NO!     not sure yet

page 4    2400x3600  336,353       X            no       !NO!     not sure yet
(5x5)

page 5    2400x3600   892,759      31809         yes       YES     not sure yet

page 6    2400x3600   1,223,337 7524 nonASCI     random   !NO!
                                 of random   false positive
                                  garbage

onion 4 jpgs:

page 7     2400x3600     400dpi     no ourguess
page 8     2400x3600     400dpi     no ourguess
page 9     2400x3600     1dpi       outguess
page 10    2400x3600     400dpi     no ourguess


Neded to make more tests to figure out when outguess starts to change backgtund pixels:

[03:25] <masso> at ~25-30% of max possible size you should be fine without background scrambling

[02:07] <masso> NiceLurk: ya, I did a lot of things with outguess. It decreases the rgb values of px by max 1 for R and B, 2 for G


P setting for outguess:

  • -p <param> parameter passed to destination data handler
  • it influences if outguess changes background or not, basically it is jpg compression if i understood correctly
P setting for outguess

<andycactus> do you have a few minutes
<andycactus> re image analysis of outguess and image backgrounds
<andycactus> i saw the table you put up on wiki and the lack of background artefacts in this years images
<Lurker69> yeah
<Lurker69> not sure about that yet
<Lurker69> but we asume that outguess if message is short enough doesnt  put artefacts on background
<andycactus> did you realise that this happens if you put -p"100" the background effect goes away
<Lurker69> but  i/we need to test that with example jpgs in which we will put outguee mssages of different sizes
<andycactus> this is the quality setting for outguess
<andycactus> for jpg compression
<Lurker69> no havent try that yet
<Lurker69> oh so on -p100 this doesnt happen
<Lurker69> what is default outguess jpg compresion?
<Lurker69> looks like cca 50
<andycactus> if you look at the image headers, the quantize header tables are full of ones eg 1st image
<Lurker69> judgign the jpgs
<andycactus> default is 75
<andycactus> when quantise tables are full of ones, outguess had a high eg -p"100" set
<andycactus> so effect is the 'ditthering' of output gets put around say the text or image details
<andycactus> in tiny 'squares'
<Lurker69> yeah, so when big squaress happen?
<andycactus> then in those images the quantisation tables are not full of ones
<andycactus> so a lower n or default of 75 is used for -p"n"
<Lurker69> ok so basicly it is possible that page 6 has outguess but cicada used -p"100" tag for it, although this is unlikely
<Lurker69> i have to try to cretae same message as cicada did, one on twitter, then out in exact same text we got outt of it, and  observe filesize and dithering effects
<andycactus> well I dont know. whenever I have tried my own tests even on white bg with -p"100" then the background around the letters is affected
<andycactus> just around letters say
<Lurker69> yeah, if you ahve effect only areoung letter it is very hard to determine if it is jpg or outguess
<andycactus> jpegsnoop shows you the quantisation tables full of ones, most images this year
<andycactus> except for one, page five which has the old style artefacts
<Lurker69> http://i.imgur.com/MYMoWUX.png  here is massos experiment, here you can distingush outguess from jpg ditherind
<andycactus> and I would say he used default quality on that one
<andycactus> the quantisation table will not be full of ones
<Lurker69> yeah he did, ithink
<Lurker69> http://prntscr.com/2kd1x6 here  also, you can notice alot more continuous vretical ines of pixels near vertical parts of runes
<andycactus> those artefacts would go to the 'higher def' type if he used -p"100"
<Lurker69> Page4artefactsinlight.jpg
<Lurker69> but here on page 4... you can sy for certaint
<Lurker69> there arent many vertical lines, but there are few..
<Lurker69> so maybe p100 and very short mesage?  or most probbybly nothing
<andycactus> well that page 4 does look like a -p"100" type of effect rather than just jpeg artefacts
<andycactus> and for some reason page five did not use -p"100"

Cicada black jpg

All of those conatin Legit Outguess, but one frno 2014 does not have background artefacts.

Page 1, 2 and 3

All 3 of them contani Legit Outguess, but none of them had Background Artefacts. Strange that page 3 that is visually very similar to pages 5 and 6 does not have background artefacts.


Page 4

We didnt find any Outguess in t yet, Image contains no background artefacts, but no sure if that means no outugess. Further tests needed to cocnlude anything

Page 5 and 6

Half of each picture. Clearly shows that  Left (Page 6) Does not conatin same amount of dstenographicly outgueesed text as RIght one (Page 5), where we found Outguess message with 31809: short text, small jpg in hex, and PGP signature.

Testing outguess by putting mesage in sample picture

I will make better explanation and more gifs some other day.

But most important things i figured out are. If you use setting -p100 while outguessing then outguess is visually undetectable. But so far we dont have any undeniable proof that cicada ever used anything than default -p 75.

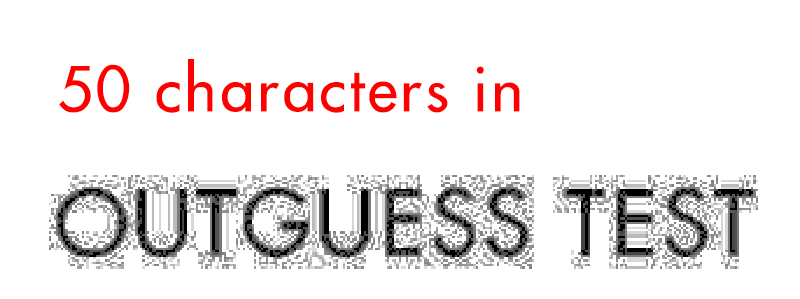

50charoutguesscomparison

jpg saved at 50% with 50 hidden characters and you use default p=75% compression for outguess

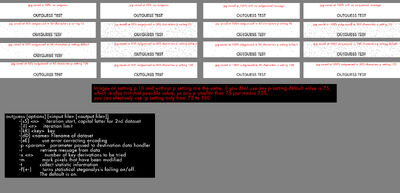

Outguess tests

testing of outguessing various length messages in jpg

This jpg shows different copmression rates and differnt lenght of messagess.

Mos notbale it that using -p 100  makes outguess images visually almost  imposible to distingush forom source jpg and precticly undetectable by this method.


Those images were mage by copying laybe two times in PS, then making one leyer levels up fully, to reveal dark artefacts; and other levels down fully to reveal light artefacts. thne turning visibility of top layer o 50% so both kind of atefacts are visible on same view.


Some questions remain unanswered

Why initial jpg from 2014 doesnt have background artefacts like all previous white text on black backgrounfd cicada images is still ndetermined.

Why pages 2, 3, and 4 das no visual background artefacts is sitll undetermined.  We suspect lenght of message or using higher than default setting might  casued this, but firther tests  to replicate exact same situtaion are needed to  be sure.



Soulseekah analysis:

We have theory hat jpg snop can detect outguess via fingerprint... but that needs to be tested:

http://www.impulseadventure.com/photo/jpeg-snoop-identify-edited-photos.html


[15:01] <soulseekah> https://infotomb.com/kt5k8.txt <- JPEG Analysis
[15:02] <soulseekah> https://infotomb.com/vmcfx.txt <- fingerprints



https://infotomb.com/kt5k8.txt
https://infotomb.com/9yd96.txt
https://infotomb.com/vmcfx.txt
https://infotomb.com/8xopw.txt
https://infotomb.com/y0mhn.txt
https://infotomb.com/kcq8k.txt



https://infotomb.com/r39qe.txt - imgur
https://infotomb.com/f3uyg.txt - onion1
https://infotomb.com/9yd96.txt - onion2 - liber primus
https://infotomb.com/g2f7j.txt - onion2 - chapter 1
https://infotomb.com/cg5bf.txt - onion2 - a warning
https://infotomb.com/nxbw8.txt - onion3 - matrix
https://infotomb.com/3sfvq.txt - onion3 - welcome welcome
https://infotomb.com/ana3x.txt - onion3 - command yourself
https://infotomb.com/h9jl8.txt - onion3 - onion4 encryption

ppi of jpgs:

[14:29] <soulseekah> Can confirm, the second one is 400ppi
[14:29] <soulseekah> vs first one is 74ppi
[14:38] <masso> twitter 96
[14:38] <masso> Blake 96
[14:38] <masso> Liber 96
[14:38] <masso> Chapter 96
[14:38] <masso> Runes 96
[14:38] <masso> Server status 72
[14:38] <masso> 1st runes 96
[14:38] <masso> 2nd runes 400
[14:38] <masso> onion 400


Exif of all 4 pages from onion 4.

http://regex.info/exif.cgi?dummy=on&imgurl=https%3A%2F%2Finfotomb.com%2Fqjiqh.jpg
http://regex.info/exif.cgi?dummy=on&imgurl=https%3A%2F%2Finfotomb.com%2F3vw2u.jpg
http://regex.info/exif.cgi?dummy=on&imgurl=https%3A%2F%2Finfotomb.com%2F609xy.jpg
http://regex.info/exif.cgi?dummy=on&imgurl=https%3A%2F%2Finfotomb.com%2F8do0b.jpg

First Second anf Fourth show Resolution    400 pixels/inch
Third one that contained outguess shows Resolution 1 pixels/None, like all previous jpgs with outguess did


WE NEED TO ADD dpi resolution in table on top

New stufff:

for now I'm 80% sure that we don't have outguess with password on page 6, but more tests needs to be done:

half legit proofs:

[18:45] <Lurker69> http://imgur.com/BtHz9g7

[03:20] <Lurker69> i am 90%
[03:20] <Lurker69> or 95% sure that page 6 has NO outguess
[03:21] <Lurker69> http://imgur.com/a/pWUAW
[03:21] <Lurker69> but i need like 2 hours more  so probbabyl 3 days to finih it
[03:22] <Lurker69> need to test exactly when outguess tarts to fuck with abckground
[03:22] <Lurker69> sinc inital 2014 pic does not have square on background but it has outguess in it
[03:23] <masso> depends on the amount of data to hide
[03:25] <masso> at ~25-30% of max possible size you should be fine without background scrambling

ALL SORTS OF UNRELTATED STUFF AND MASSOS POSTS IN BETWEEN

[14:26] <durex> i use this for the images .. ive written it myself... so... http://pastebin.com/7CDNECYx
[14:26] <TaiiwoBot> ^ [C++] #include <iostream>  #include <string.h>  #include <fstream>  #include <string>  - Pastebin.com ^
[14:27] <essen_> if you want a byte reverse tool, here is a quick and dirty c program: http://pastebin.com/Auxu8czA
NiceLurk has changed topic for #CicadaWiki to: "Channel for people who want to help making Cicada 3301 Wikia page better:  http://uncovering-cicada.wikia.com   Main channel: #cicadasolers"
NiceLurk has changed topic for #CicadaWiki to: "Channel for people who want to help making Cicada 3301 Wikia page better:  http://uncovering-cicada.wikia.com   Main channel: #cicadasolvers"
<masso> http://6666.99k.org/ogtest.jpg
[13:30] <masso> http://prntscr.com/2jioe7
[14:23] <mlehmk> http://pastebin.com/tW06q05q
[14:23] <TaiiwoBot> ^ [C#] Reverse - Pastebin.com ^
[13:39] <Lurker69> uncovering-cicada.wikia.com/wiki/How_to_detect_outguess_in_jpgs
<Lurker69> "Observation: Gematria doesn't have a letter V in it. This is the only letter in the message without a value (the only other letter not defined in the Gematria is Q). If we take the latin convention that V = U  we get that 'divinity' = 376 => Line 3 = 1229."
<glurk> Eve57 I promise you, if you take that file and reverse it, it will have a corrupt JPG.  Someone changed it to get "page 6"
<masso> Lurker69: check my last link, put it in wikia or something for all the unbelievers... :)
<NuclearPizzaCats> Lurker69: ok, thank you for the explanation !
--> djs (47e42a74@gateway/web/freenode/ip.71.228.42.116) has joined #cicadasolvers
<Lurker69> masso: why our picture looks like it ahs more jpg compression on top as towards bottom?
<masso> Lurker69: but resave it somewhere please cause it won't be on my server for eternity
<Lurker69> leeft and eight parts
f[13:32] <masso> so, and here is the pic in complete, no correction at all, everybody can play around with contrast and things and see what outguess does. green line is cut, left side without, right with outguess
[13:32] <masso> http://imgur.com/okRX8bX
[13:30] <masso> Lurker69: Here is your pic, I created a pic in the same size as the matrix rune pic, text on it (~same % colour/white), right side has outguess, left side not, colour/contrast correction
[13:30] <masso> http://prntscr.com/2jioe7


MORE POTENTIAL INFORMATION

ye7eech3eex on IRC notied a couple of odd patterns in some of the images.  He was running this:

https://www.paste.to/smbBUBXk

and the results of his investigations are here:

https://www.paste.to/TANc9xqn


I saw a similar anomaly with a different technique - processing the binary bits of the JPG files of the six pages of the book we have and viewing them as a bitmap show odd patterns in page 1 and page 2:

echo 'P1' > p1.pbm && echo '4691 288' >> p1.pbm && xxd -b ../Page\ 1_Liber_primus_OK.jpg | cut -c "10-63" >> p1.pbm
echo 'P1' > p2.pbm && echo '3274 428' >> p2.pbm && xxd -b ../Page2_Chapter_Intus_OK.jpg | cut -c "10-63" >> p2.pbm
echo 'P1' > p3.pbm && echo '4421 2672' >> p3.pbm && xxd -b ../Page3_Runes_Warning.jpg | cut -c "10-63" >> p3.pbm
echo 'P1' > p4.pbm && echo '1641 1640' >> p4.pbm && xxd -b ../page4.jpg | cut -c 10-63 >> p4.pbm
echo 'P1' > p5.pbm && echo '2866 2492' >> p5.pbm && xxd -b ../page5.jpg | cut -c 10-63 >> p5.pbm
echo 'P1' > p6.pbm && echo '3468 2822' >> p6.pbm && xxd -b ../page6.jpg | cut -c 10-63 >> p6.pbm

Note: The sizes for the pbm's were just factors of the file size in bits of the JPG (e.g. 4691x288=1351008, which is 168876kb which is the size of the Page\ 1_Liber_primus_OK.jpg file).  The anomaly is visible whatever dimensions you choose.  File sizes are:

168876 16 Jan 12:25 Page 1_Liber_primus_OK.jpg
175159 16 Jan 12:26 Page2_Chapter_Intus_OK.jpg
1476614 16 Jan 12:29 Page3_Runes_Warning.jpg
336353 15 Jan 08:29 page4.jpg
892759 15 Jan 12:03 page5.jpg
1223337 12 Jan 15:31 page6.jpg

Note2: the jpg files used are those downloaded from the .7z archive linked in the wiki.

jonsmif

The pbm files for pages were loaded into GIMP and exported for upload to tinypic - take a look at the first two pages:

http://oi39.tinypic.com/28b5tme.jpg  (version from ye7eech3eex: http://www.anonimg.com/img/67019d8adac7dfe129450d7464d55657.jpg)
http://oi44.tinypic.com/2jev5vt.jpg  (version from ye7eech3eex: http://www.anonimg.com/img/91814fa25b5c0952fc8c4926699c3a33.jpg)

There is clearly something odd in the images.  Could this be an artefact of the outguess data stored in the files (both of these files have a hidden PGP signed bunch of hex), or could it be some other anomaly?

-jonsmif

Ad blocker interference detected!


Wikia is a free-to-use site that makes money from advertising. We have a modified experience for viewers using ad blockers

Wikia is not accessible if you’ve made further modifications. Remove the custom ad blocker rule(s) and the page will load as expected.
